MicroLux R8 Milling Machine Specifications

Table size: 16 inches wide x 3-3/4 inches deep

Table travel (X direction): 8 inches

Cross slide travel (Y direction): 4 inches

Headstock travel (Z direction): 7 inches

Clearance (spindle to table-top): 10 inches

Center of spindle to face of column: 6 inches

Spindle speed: Continuously variable between 0 and 2,500 rpm with belt-driven spindle

Spindle taper: R8

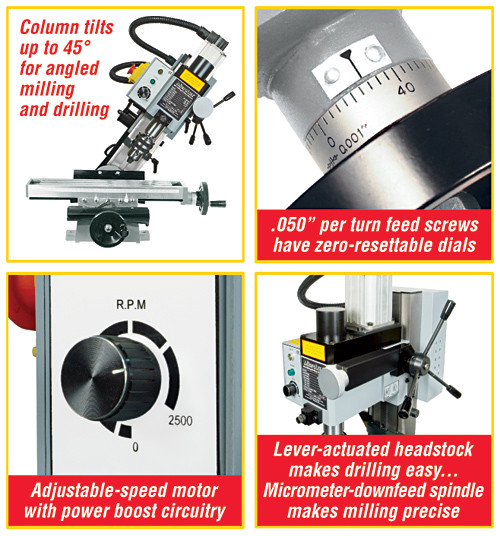

Column angle: tilts from -45 degrees to +45 degrees

Motor: 500 watt (0.67hp) brushless DC, operates from standard 120v AC outlet

Overall size: 30 inches high x 20 inches deep x 20 inches wide

Weight: 110 pounds (basic machine without accessories).

#84630 MicroLux R8 Milling Machine includes variable-speed 500 watt (2/3hp) brushless motor with ultra-quiet belt-driven spindle, 1/2 inch drill chuck and drawbar, table locks, column lock and drill stop, power supply with feedback-sensing power boost circuitry, spring-assisted headstock return, V-way chip guards, chuck/collet chip
